The Optispark distributor is the heart of your LT1 or LT4’s ignition system — but even the best components can't overcome years of engine neglect. To help you get the most life out of your distributor, we're sharing key insights on why Optisparks fail and how to avoid common pitfalls that can shorten their lifespan.
Engine maintenance is critical, especially as these LT1 and LT4 platforms age. Unfortunately, we've seen units that have clearly been subjected to conditions no electronic component should be expected to withstand—things like oil/coolant intrusion and other signs of abuse and neglect.
Why do Optisparks fail prematurely?
The impact of external factors and poor maintenance is significant.
Oil Contamination

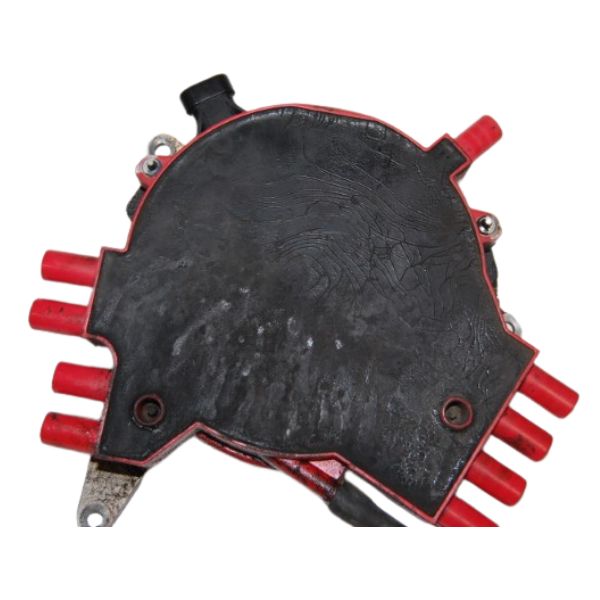

We're seeing high-mileage vehicles where severe oil leaks damage the cap and secondary housing seals. Often, a compromised crankshaft hub seal is found to be slinging hot oil directly onto the Optispark, causing damage to the module once the seals give out.
^Oil coated heat dissipation plates.
Coolant Intrusion
There’s a common misconception that a leaking water pump allows large amounts of coolant to enter the Optispark. In reality, that's rarely the case. The weep hole is at the bottom of the water pump, so when a leak occurs, coolant tends to spray onto the outside of the distributor cap—not inside it. Since both the engine and cap are typically at similar temperatures when this happens, actual coolant intrusion is minimal, especially if the distributor’s seals are in good condition.
However, a major hose rupture near the thermostat housing can be a different story. In that case, coolant can gush over the top of the Optispark. If the distributor seals are already compromised, this can lead to significant internal contamination.
^Location of the weep hole on an LT1 water pump.
Cooling System Neglect
Due to the Optispark's placement, it’s already exposed to significant heat under normal conditions. If the cooling system isn't operating correctly — due to issues like a clogged radiator, stuck thermostat, or low coolant level — engine bay temperatures can climb even higher. Chronic overheating accelerates the breakdown of seals and plastics and increases the risk of premature sensor failure.
If your C4 Corvette’s cooling system is functioning properly, you should expect to see engine temperatures at around 220°F while idling. Once you're moving at speeds above 35–40 MPH, the temperature should stabilize between 193–196°F. If you're driving at higher elevations with long grades, it's normal for the temperature to hover around 200°F. The key is that while you're moving, the engine temperature should remain steady and stay at or below 200°F.
One important tip: If you notice temperature fluctuations while driving, it's often a sign that your coolant level is low.
^Debris buildup between the condenser and radiator is a common issue in C4 Corvettes.
⚡ Excessive Voltage
Typically caused by voltage spikes—often originating from open or high-ohm spark plug wires. If a unit comes back with severe distributor contact wear, it's usually due to this voltage stress.
The Good News:
When your Optispark distributor replacement is performed properly, our product is designed to last 10 years and 100K miles minimum!
Taking a little time to address engine health before installation can go a long way in getting the most out of your Optispark.
