When the fourth-generation Corvette debuted in 1984, it redefined what an American sports car could be. With improved handling, futuristic styling, and bold innovations, it pushed the envelope. One of the most unusual innovations? The 4+3 overdrive transmission — a blend of manual performance and automatic efficiency.
At first glance, it sounds complex: a 4-speed manual mated to an automatic overdrive unit. But this hybrid approach gave drivers access to seven forward gears, offering better highway fuel economy without sacrificing drivability. Of course, with new tech came new quirks — and plenty of lessons learned over the years.
How the 4+3 Overdrive System Works
The 4+3 transmission used a Borg-Warner T-10 4-speed manual gearbox combined with a Doug Nash-designed overdrive unit. The overdrive was controlled electronically and hydraulically, engaging through two sets of wet clutch packs and a planetary gear assembly. To build fluid pressure, the system relied on a pump driven by the output shaft — meaning the car had to be in motion for overdrive to function.
This setup presented a few challenges:
-
The car needed to reach at least 15 mph before the overdrive could engage.
-
A spring-loaded clutch pack held things together at idle due to the lack of fluid pressure.
-
Without a cost-effective way to increase clutch pressure, high-horsepower builds (>400 lb-ft torque) could easily overpower the system.
To prevent premature upshifting, GM incorporated a first-gear switch and a pressure-sensitive switch that worked with the ECM. Only when all parameters were met would the ECM allow the overdrive solenoid to engage.
^ Common culprit: GM switch #14057529. When overdrive fails to engage, this switch is often to blame — and it’s easy to replace with the car off the ground.
Front Bearing Failure: A Costly Issue
The front bearing in the OD unit does double duty, handling both radial and thrust loads. It’s a big ask for a single bearing — and when it fails, it often takes the front seal and planetary gear with it.
Once the seal fails, transmission fluid and gear oil start mixing, which leads to serious internal damage. The overdrive unit uses Dexron III ATF, while the main gearbox requires 75W90 gear oil — and mixing them is a recipe for failure.

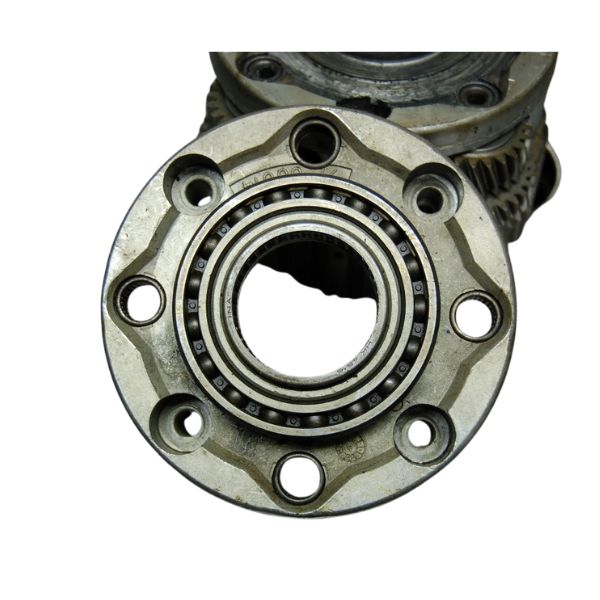

^ This little radial/thrust bearing may not look like much, but replacing it — and the damaged planetary assembly — can cost hundreds.
^ Here’s a worst-case scenario: the failed bearing spun in the case and destroyed the carrier housing. Expensive and avoidable with regular maintenance.
Known Manual Gearbox Quirks
While the T-10 was generally solid, early 4+3s had one well-known issue: popping out of second gear during high-RPM shifts. A modified synchronizer ring design helped resolve this, and many rebuilt units include this fix.
Even with a solid trans, don’t skip fluid maintenance. Over time, metallic debris from shifting can wear bearings and other components. Fluid changes every few years go a long way toward longevity.
Diagnosing Electrical Issues
When overdrive doesn’t engage, wiring or switch issues are usually the culprit. A few quick checks:
-
The on/off switch on the 1-2 shift shaft is prone to failure after years of use.
-
The overdrive relay, piggybacked near the fuel pump relay, can fail intermittently.
-
Heat damage to the driver-side case connector often results in poor contact.
^ Check the dark green wire at the case connector. If your OD light isn’t working, this wire and relay are key diagnostics points.
Pro tip: Use Dexron IV in the OD unit. It supersedes all prior Dexron specs.
Later Model Notes: 1987–1988
By 1987, GM routed the overdrive light control through the ECM via serial data — which makes troubleshooting more difficult. Always consult the factory service manual for proper diagnostic procedures. If you suspect the first-gear switch, try bypassing it with a jumper wire before replacing it.
Also worth noting: Beginning in 1986, the ECM required the engine coolant to reach 160°F before allowing overdrive engagement.
Clutch Problems Masquerading as Transmission Problems
Many owners blame the transmission when the car grinds going into reverse or first — but 99% of the time, it’s a clutch disengagement issue.
Symptoms and causes:
-
Pumping the clutch pedal helps: Likely a hydraulic issue.
-
Clutch pedal feels normal but shifting is difficult: Possibly a sticking clutch disc.
-
Transmission misalignment on the bellhousing can also cause poor disengagement.
Don’t Overlook the Lockout Rod
Over time, the reverse lockout rod wears, allowing drivers to slip into reverse without pulling the knob. Even worse, the plastic knob on the rod can break off — leaving you unable to engage reverse at all.
We’ve sold replacement lockout rods and knobs for years — made with air-hardened steel for durability and designed to match factory fitment.
🛒 Click here to view the 4+3 lockout rod in our store »
Final Thoughts
The 4+3 transmission was a bold experiment — one that made the C4 stand out in a sea of conventional drivetrains. With regular maintenance and a few smart upgrades, it can still deliver years of reliable performance.
Have questions about your 4+3? Reach out. We’ve spent decades wrenching on these cars and we’re happy to help.
